Thermal Insulation Pipe HDPE Shell Extrusion Line
Thermal Insulation Pipe HDPE Shell Extrusion Line Thermal Insulation Pipe HDPE Shell Extrusion Line Thermal Insulation Pipe HDPE Shell Extrusion Line
  • Thermal Insulation Pipe HDPE Shell Extrusion Line

  • item No : SEL-1000
  • Inquiry now

Detailed


Thermal insulated pipe making machine

INTRODUCTION
Pipe range:110-550mm, 400-960mm, 850-1380mm, 1154-1680mm

Pipe application area
Directly buried Polyurethane foamed pre-insulated pipe is widely used in hot water, crude oil and natural gas transportation, also it is the important parts of city central heating system. Thermal insulation pipe with good thermal insulation performance, the pipe is composed of steel pipe, polyethylene shell and polyurethane foam layer.

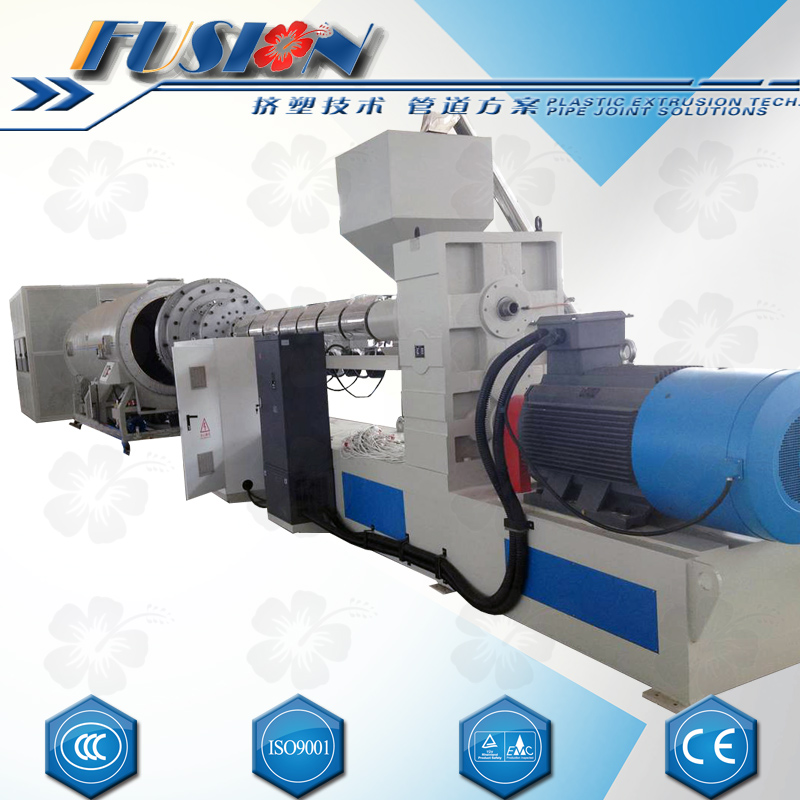

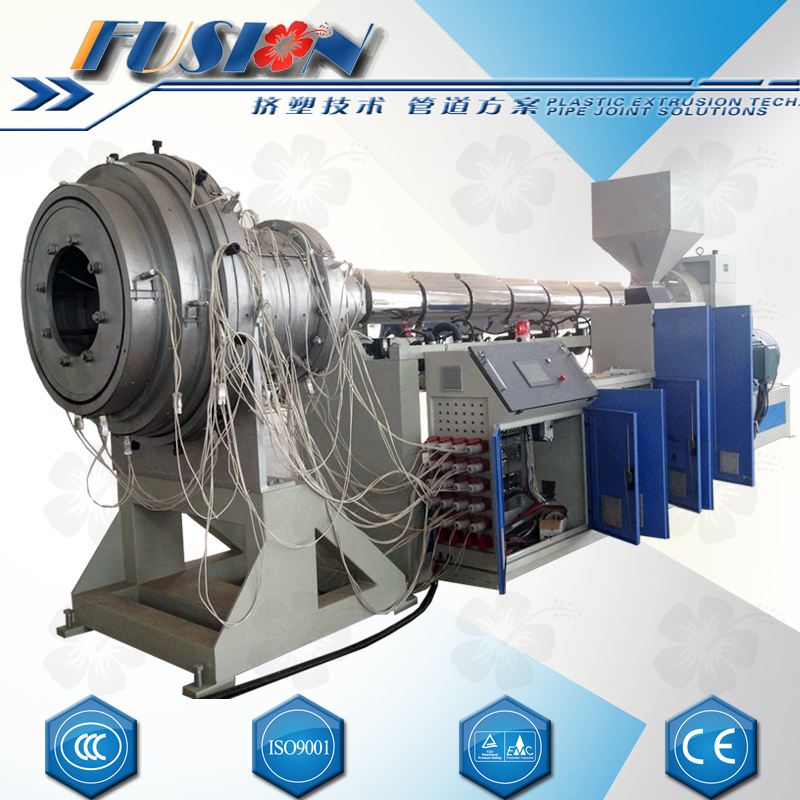

 thermal insulation pipe extruder

Composition of Equipments

1set Vacuum loader

1set Hopper Dryer.

1set Efficient single screw extruder (Long L/D ratio)

1set Mould

1set Vacuum calibration tank

1set Water spraying tank

1set Hauling machine

1set Cutting machine

1set Stacker

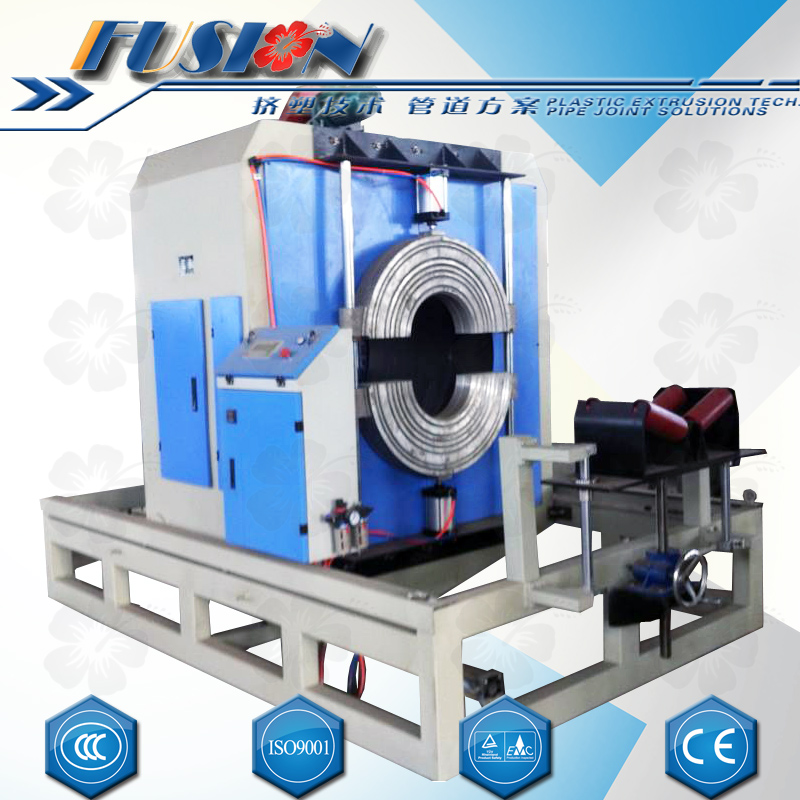

Planetary cutting machine

Directly buried Polyurethane foamed pre-insulated pipe is widely used in hot water, crude oil and natural gas transportation, also it is the important parts of city central heating system. Thermal insulation pipe with good thermal insulation performance, the pipe is composed of steel pipe, polyethylene shell and polyurethane foam layer.

The polyethylene shell produced by FUSION-PLASTECH vacuum calibration technology has the characteristics of high strength, strong toughness, smooth surface of the pipe, etc.

This series of extrusion lines include extrusion system, vacuum calibration device, cooling system, tracking and cutting system.

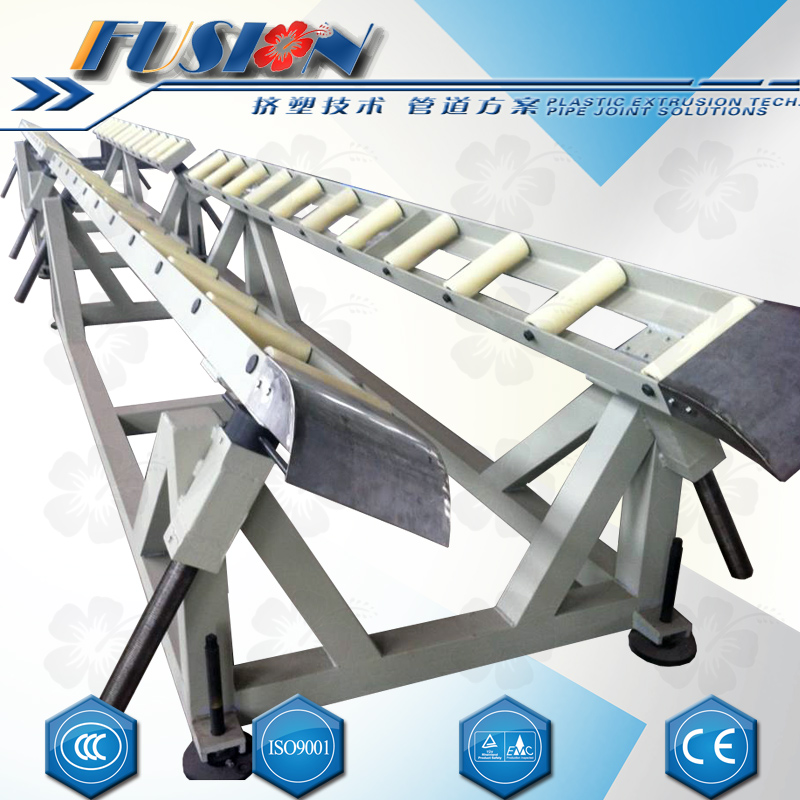

pu foamed pipe stacker



Model

Extruder

Pipe Range

Capacity

Installed power

L

SEL-110/550

SJ-75/33

110-550mm

250-350kg/h

160kw

34m

SEL-450/850

SJ-90/33

450-850mm

400-500kg/h

380kw

36m

SEL-850/1380

SJ-120/33

850-1380mm

700-900kg/h

440kw

40m

SEL-960/1680

SJ-150/33

960-1680mm

800-1000kg/h

580kw

48m
