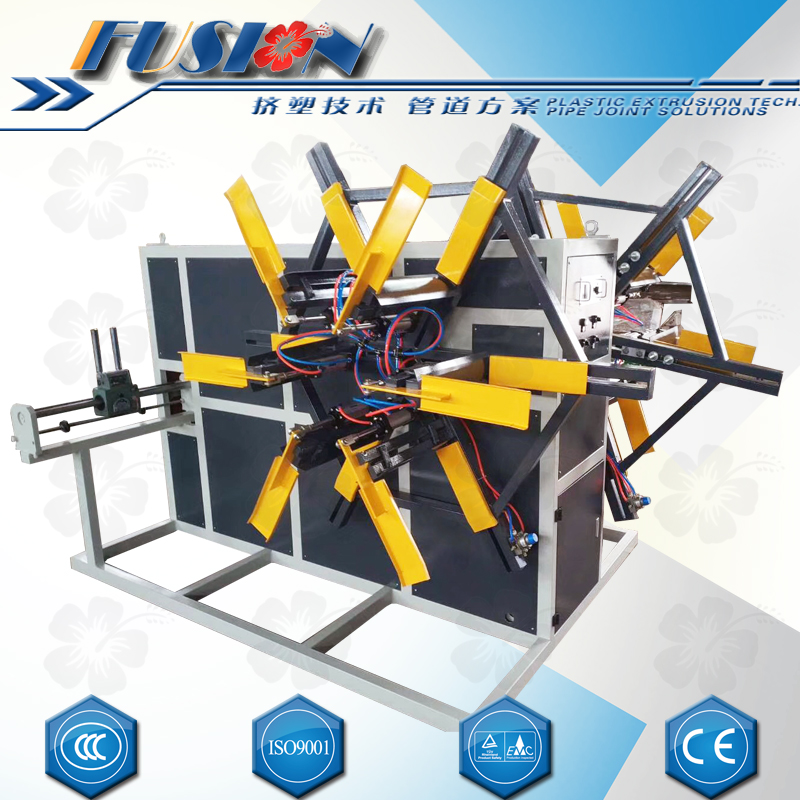

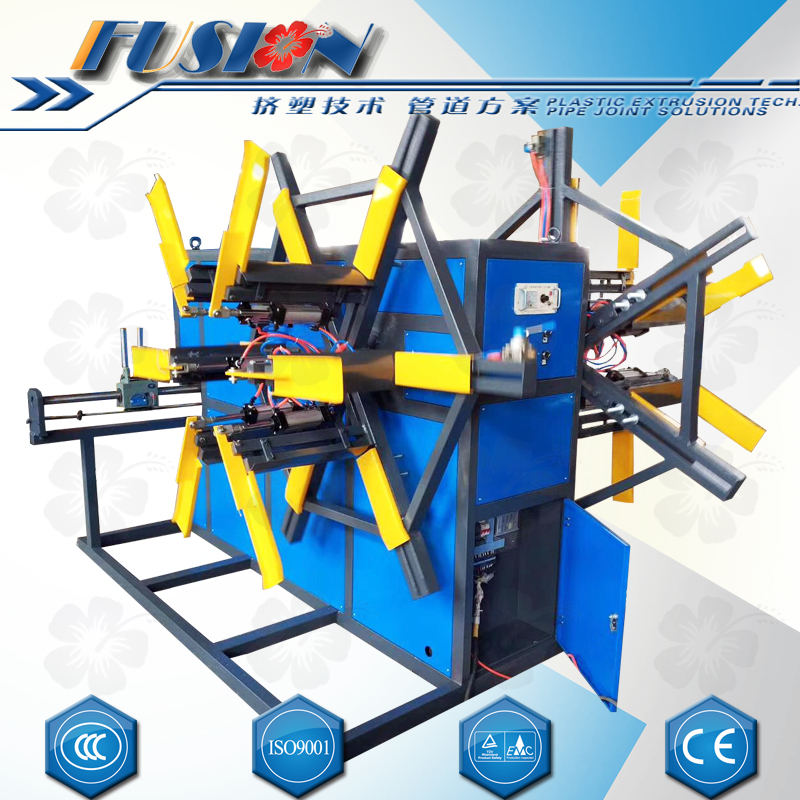

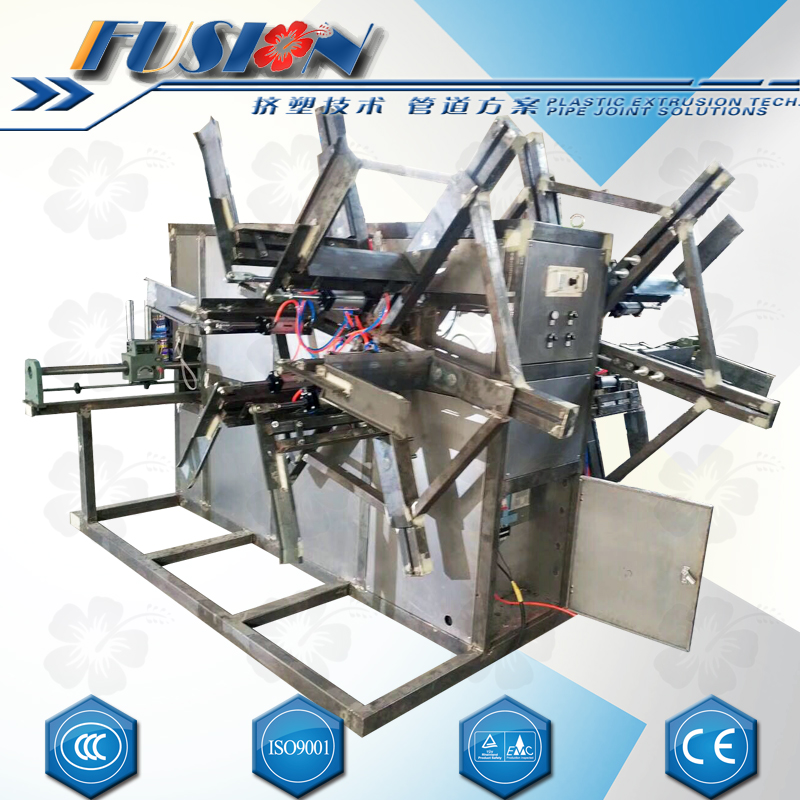

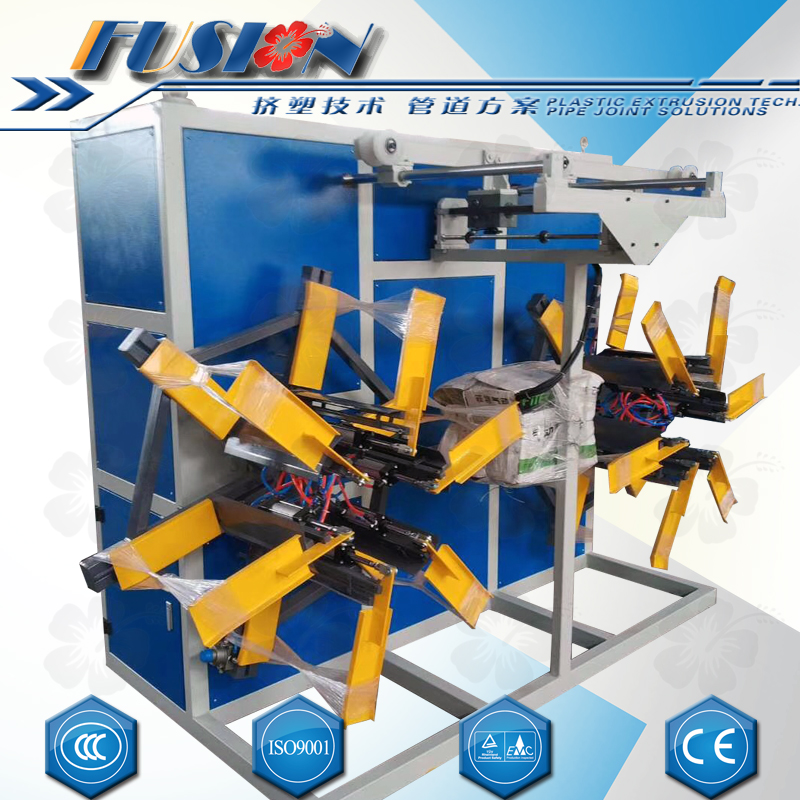

16-160mm HDPE Solid Wall Pipe Coiler
16-160mm HDPE Solid Wall Pipe Coiler 16-160mm HDPE Solid Wall Pipe Coiler 16-160mm HDPE Solid Wall Pipe Coiler 16-160mm HDPE Solid Wall Pipe Coiler
  • 16-160mm HDPE Solid Wall Pipe Coiler

  • item No : 160
  • Pipe Style: HDPE Pipe, Single Wall Corrugated Pipe

    Pipe Range: 16-160mm

    Working Position: Single or Double

    Control system: Automatic

    Motor style: Torque Motor

  • Inquiry now

Detailed


Pipe coiler supplier in China

Pipe Winding machine, Coiler, Pipe Coiler, Pipe winder

HDPE pipe automatic coiler for diameter 50-160mm

Coiler is the part of pipe extrusion lines. It is composed by Drive unit, Guide system and Control parts. It usually adopted by HDPE pipe extrusion line and Single wall corrugated pipe production line.

winding machine

Coiler makes the pipe Storage and transportation more convenient. Also when the pipe packed in a roll will be much better for a pipe construction. Less pipe joints bring better pipe system.

 Pipe winder

What we can do for you?

1.Full models of Coilers, from 50mm-160mm hdpe pipes;

2. Personalization and Customization Service.

You are allowed to chose the coiler style you like, single positon, double positions.

You are allowed to paint the machine as your prefer.

3.The cheapest but good quality coiler we support.

Hundreds of Coilers are sold every month, we make “Apple” become real apple, everyone deserve it.

No.

ITEM

Parameters

1

Model

BWSP-G63200

2

Pipe Range

110mm, 160mm, 200mm

3

ID(mm)

1000-1500mm(Adjustable)

4

MAX. OD(mm)

2300mm

5

Width(mm)

320-700mm(Adjustable)

6

Speed

0-10m/min

7

Compressed air(Mpa)

6bar

8

Dimensions(mm)

4000mm(L)*2200mm(W)*3500mm(H)

9

Weight

1500kg

10

Motor

Torque motor, 25N*m

11

Pipe Length

25m(200mm)     50m(110,160mm)

Remark:Above tables only showing as reference, detail parameters need to confirm according to the pipe style, wall thickness, etc.

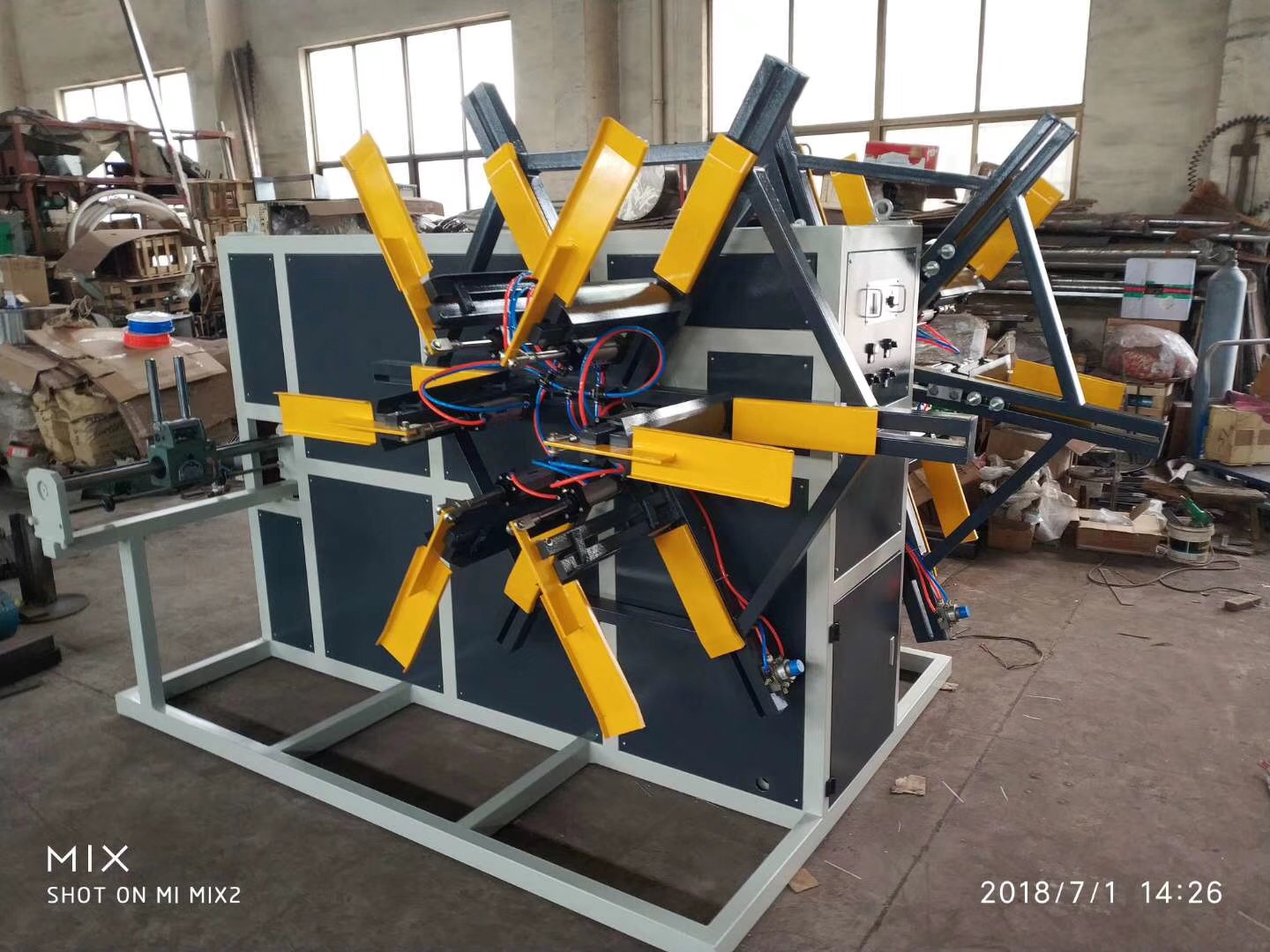

Let’s find what happed in our plant.
